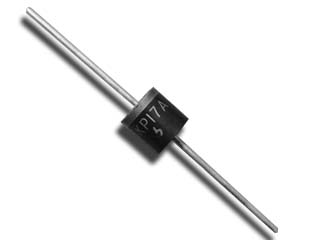

20KP (P600)

Description :

20KP DEVICES	REVERSE STAND-OFF VOLTAGE V_RWM(v)	BREAKDOWN VOLTAGE Min.@I_T V_{BR Min.}(V)	TEST CURRENT I_T(mA)	MAXIMUM CLAMPING VOLTAGE @_Ipp V_C(V)	PEAK PULSE CURRENT I_pp(A)	REVERSE LEAKAGE @V_RWM
20KP DEVICES	REVERSE STAND-OFF VOLTAGE V_RWM(v)	BREAKDOWN VOLTAGE Min.@I_T V_{BR Min.}(V)	TEST CURRENT I_T(mA)	MAXIMUM CLAMPING VOLTAGE @_Ipp V_C(V)	PEAK PULSE CURRENT I_pp(A)	I_R(uA)
20KP20A/CA	20	22.34	50	36.80	548.90	5000
20KP24A/CA	24	26.81	50	41.20	490.30	5000
20KP26A/CA	26	29.04	50	44.70	451.90	2000
20KP28A/CA	28	31.28	50	48.00	420.80	1000
20KP30A/CA	30	33.51	5	51.50	392.20	250
20KP32A/CA	32	35.74	5	54.30	372.00	150
20KP34A/CA	34	38.00	5	57.50	351.30	50
20KP36A/CA	36	40.20	5	61.50	328.50	20
20KP40A/CA	40	44.70	5	67.80	297.90	15
20KP44A/CA	44	49.10	5	72.70	277.90	2
20KP48A/CA	48	53.60	5	79.40	254.40	2
20KP52A/CA	52	58.10	5	85.80	235.40	2
20KP56A/CA	56	62.60	5	92.60	218.10	2
20KP60A/CA	60	67.00	5	97.60	207.00	2
20KP64A/CA	64	71.50	5	104.00	194.20	2
20KP68A/CA	68	76.00	5	110.00	183.60	2
20KP72A/CA	72	80.40	5	116.00	174.10	2
20KP80A/CA	80	89.40	5	130.00	155.40	2
20KP88A/CA	88	98.30	5	142.00	142.30	2
20KP96A/CA	96	107.20	5	155.00	130.30	2
20KP104A/CA	104	116.20	5	168.00	120.20	2
20KP112A/CA	112	125.10	5	182.00	111.00	2
20KP120A/CA	120	134.00	5	194.00	104.10	2
20KP132A/CA	132	147.40	5	213.00	94.80	2
20KP144A/CA	144	160.80	5	232.00	87.10	2
20KP160A/CA	160	178.70	5	258.00	78.30	2
20KP172A/CA	172	192.10	5	277.00	72.90	2
20KP180A/CA	180	201.10	5	291.00	69.40	2
20KP192A/CA	192	214.50	5	309.00	65.40	2
20KP204A/CA	204	227.90	5	329.00	61.40	2
20KP216A/CA	216	241.30	5	348.00	58.00	2
20KP232A/CA	232	259.10	5	374.00	54.00	2
20KP240A/CA	240	268.10	5	387.00	52.20	2
20KP256A/CA	256	286.00	5	412.00	49.00	2
20KP280A/CA	280	312.80	5	451.00	44.80	2
20KP300A/CA	300	335.10	5	483.00	41.80	2
