 Through-hole |
|
|
| 60V Series |
| |
 |
|
| |
| Description : |
 |
| Electrical characteristics(25℃) |
| |
| Model/PDF |
Vmax |
Imax |
Ih |
Rmax |
Rmin |
Pd |

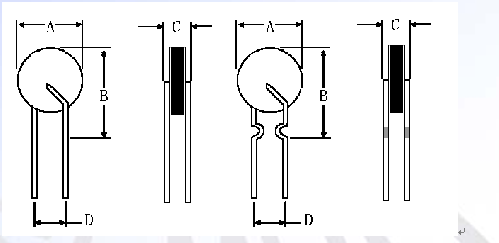

Fig. |
Maximum Contour Size(mm) |
| (V) |
(A) |
(A) |
(Ω) |
(Ω) |
(W) |
| |
|
|
|
|
|
A |
B |
C |
| SB60-005 |
60 |
40 |
0.05 |
20 |
12 |
0.3 |
1 |
5 |
8.5 |
3.1 |
| SB60-010 |
60 |
40 |
0.1 |
7.5 |
2.5 |
0.38 |
1 |
5.5 |
9.5 |
3.1 |
| SB60-017 |
60 |
40 |
0.17 |
5.21 |
2.84 |
0.48 |
1 |
7.4 |
12.7 |
3.1 |
| SB60-020 |
72 |
40 |
0.2 |
2.84 |
1.83 |
0.41 |
1 |
7.4 |
12.7 |
3.1 |
| SB60-025 |
72 |
40 |
0.25 |
1.95 |
1.25 |
0.45 |
1 |
7.4 |
12.7 |
3.1 |
| SB60-030 |
72 |
40 |
0.3 |
1.36 |
0.88 |
0.49 |
1 |
7.4 |
13 |
3.1 |
| SB60-040 |
72 |
40 |
0.4 |
0.88 |
0.55 |
0.56 |
2 |
7.4 |
13.5 |
3.1 |
| SB60-050 |
72 |
40 |
0.5 |
0.79 |
0.5 |
0.77 |
2 |
7.6 |
13.5 |
3.1 |
| SB60-065 |
72 |
40 |
0.65 |
0.5 |
0.31 |
0.88 |
2 |
9.4 |
14.5 |
3.1 |
| SB60-075 |
72 |
40 |
0.75 |
0.42 |
0.25 |
0.92 |
2 |
10.2 |
15.2 |
3.1 |
| SB60-090 |
72 |
40 |
0.9 |
0.33 |
0.2 |
0.99 |
2 |
11.2 |
15.8 |
3.1 |
| SB60-110-V |
72 |
40 |
1.1 |
0.27 |
0.15 |
1.5 |
1 |
12.8 |
18 |
3.1 |
| SB60-110-F |
72 |
40 |
1.1 |
0.27 |
0.15 |
1.5 |
3 |
13 |
18 |
3.1 |
| SB60-135 |
72 |
40 |
1.35 |
0.21 |
0.12 |
1.7 |
1 |
14.5 |
19.6 |
3.1 |
| SB60-160 |
72 |
40 |
1.6 |
0.16 |
0.09 |
1.9 |
1 |
16.3 |
21.3 |
3.1 |
| SB60-185 |
72 |
40 |
1.85 |
0.14 |
0.08 |
2.1 |
1 |
17.5 |
22.9 |
3.1 |
| SB60-250 |
72 |
40 |
2.5 |
0.1 |
0.05 |
2.5 |
1 |
20.8 |
26.4 |
3.1 |
| SB60-300 |
72 |
40 |
3 |
0.08 |
0.04 |
2.8 |
1 |
23.9 |
30 |
3.1 |
| SB60-375 |
72 |
40 |
3.75 |
0.07 |
0.03 |
3.2 |
1 |
27.2 |
31.8 |
3.1 |
| SB60-500 |
72 |
40 |
5 |
0.02 |
0.03 |
4.2 |
1 |
27.2 |
31.8 |
3.1 |
|
|
|
|
