 SPD for Power Line |
|
|
| Class III Socket |
| |
 |
|
| |
| Description : |
Features:
1 single- phase, protect the the equipments at one time.
2 standard jack structure, easy to install and maintain
3 indicate the failure working state
4 total protection of commen code and differential mode
5 through-flow capacity, low residual depression, fast response time
6 automatic protection of overcurrent and overload

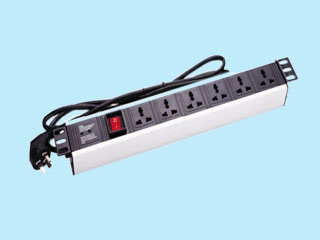

Multi functional SCZ10-3, SCZ10-6 and SCZ10-6/PDU power lightning protection sockets are designed for communication, electronic device on the occasion of operating overcoltage and lightning induction frenquently. Apply to the final level surge protection of terminal equipment, such as communication devices, computer, PDU, computer room monitor, and precise instrument, ect.
|
Type
|
SCZ103
|
SCZ106
|
SCZ106-PDU
|
|
Protection plug-digit
|
3 sockets
|
6 sockets
|
6 sockets
|
|
Nominal operating voltage
|
220V
|
|
Maximum continuous operating voltage
|
255V
|
|
Nominal current
|
10A
|
|
Nominal discharge current
|
5kA
|
|
Max. discharge current
|
10kA
|
|
Voltage protection level
|
≤1.25kV
|
|
The response time tA
|
≤25ns
|
|
Temperature range
|
-40℃…+80℃
|
|
Rated power P
|
2200W
|
|
Working instructions
|
green light/ red light
|
|
Enclosure materials
|
ABS light gray retardant plastic, UL94-V0
|
|
Shape size
|
236x63x30mm
|
232x106x30mm
|
19＂rack
|
|
Protective level
|
IP20
|
|
|
|
|
