 插件 |
|
|

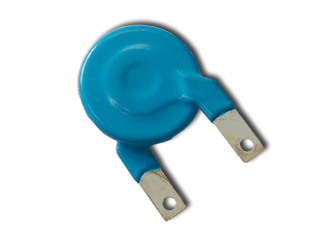

| 32D系列 |
| Varistor Voltage: 33~1600V
Withstanding Surge Current: 8000~20000A
Model Size: 32mm
Fast responding to transient over-voltage<25ns
|
|
| |
| 产品详细说明 : |
| 40Part Number |
Maximum allowable voltage |
Varistor voltage |
Clamping voltage |
Maximum peak current |
Maximum Energy |
Typical capacitance (Reference) |
| Φ32.0mm |
(Max.) |
(8/20μs) |
(100/1000μs) |
| Standard |
AC.rms(V) |
DC(V) |
V1.0mA(V) |
VC(V) |
IP(A) |
I（A） |
（J） |
@1KHz(pf) |
| 32D330K |
20 |
26 |
33(30-36) |
65 |
40
|
8000
|
40 |
30000 |
| 32D390K |
25 |
31 |
39(35-43) |
77 |
50 |
22000 |
| 32D470K |
30 |
38 |
47(42-52) |
93 |
60 |
19000 |
| 32D560K |
35 |
45 |
56(50-62) |
110 |
70 |
16700 |
| 32D680K |
40 |
56 |
68(61-75) |
135 |
85 |
15000 |
| 32D820K |
50 |
65 |
82(74-90) |
135 |
200
|
20000
|
100 |
12800 |
| 32D101K |
60 |
85 |
100(90-110) |
165 |
125 |
10500 |
| 32D121K |
75 |
100 |
120(108-132) |
200 |
150 |
8700 |
| 32D151K |
95 |
125 |
150(135-165) |
250 |
190 |
7000 |
| 32D181K |
115 |
150 |
180(162-198) |
300 |
225 |
5800 |
| 32D201K |
130 |
170 |
200(185-225) |
340 |
200 |
2500 |
250 |
5200 |
| 32D221K |
140 |
180 |
220(198-242) |
360 |
270 |
5150 |
| 32D241K |
150 |
200 |
240(216-264) |
395 |
290 |
5100 |
| 32D271K |
175 |
225 |
270(243-297) |
455 |
300 |
4800 |
| 32D301K |
190 |
250 |
300(270-330) |
500 |
330 |
4550 |
| 32D331K |
210 |
275 |
330(297-363) |
550 |
360 |
4300 |
| 32D361K |
230 |
300 |
360(324-396) |
595 |
380 |
3900 |
| 32D391K |
250 |
320 |
390(351-429) |
650 |
400 |
3200 |
| 32D431K |
275 |
350 |
430(387-473) |
710 |
430 |
3100 |
| 32D471K |
300 |
385 |
470(426-517) |
775 |
460 |
2800 |
| 32D511K |
320 |
415 |
510(459-561) |
845 |
510 |
2700 |
| 32D561K |
350 |
460 |
560(504-616) |
925 |
540 |
2550 |
| 32D621K |
385 |
505 |
620(558-682) |
1025 |
570 |
2400 |
| 32D681K |
420 |
560 |
680(612-748) |
1120 |
600 |
2200 |
| 32D751K |
460 |
615 |
750(675-825) |
1240 |
620 |
2000 |
| 32D781K |
485 |
640 |
780(702-858) |
1290 |
660 |
1900 |
| 32D821K |
510 |
670 |
820(738-902) |
1355 |
700 |
1800 |
| 32D911K |
550 |
745 |
910(819-1001) |
1500 |
750 |
1300 |
| 32D951K |
575 |
765 |
951(855-1045) |
1570 |
780 |
1200 |
| 32D102K |
625 |
825 |
1000(900-1100) |
1650 |
810 |
1100 |
| 32D112K |
750 |
895 |
1100(990-1210) |
1815 |
910 |
1000 |
| 32D122K |
880 |
990 |
1200(1080-1320) |
1980 |
960 |
920 |
| 32D142K |
1140 |
1140 |
1400(1260-1540 |
2310 |
1020 |
800 |
| 32D162K |
1280 |
1280 |
1600(1440-1760) |
2640 |
1080 |
700 |
|
|
|
|
