 插件 |
|
|

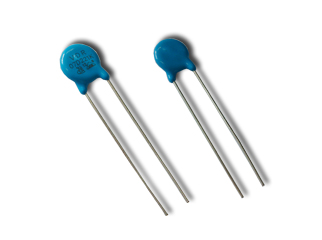

| 07D系列 |
| Varistor Voltage: 18~680V
Withstanding Surge Current: 250~1750A
Model Size: 7mm
Fast responding to transient over-voltage<25ns
|
|
| |
| 产品详细说明 : |
| Part Number |
Maximum allowable voltage |
Varistor voltage |
Clamping voltage |
Maximum peak current |
Maximum peak current |
Rated power |
Typical capacitance (Reference) |
| Φ7.0mm |
(Max.) |
(8/20μs) |
(8/20μs) |
| Standard |
High surge |
AC.rms |
DC |
V1.0mA |
VC |
IP |
Standard |
High surge |
Standard |
High surge |
（W） |
@1KHz(pf) |
| (V) |
(V) |
(V) |
(V) |
(A) |
（A） |
（A） |
（J） |
（J） |
| 07D180L |
J |
11 |
14 |
18(15-21) |
36 |
2.5 |
250 |
500 |
0.9 |
2 |
0.02 |
2800 |
| 07D220K |
J |
14 |
18 |
22(20-24) |
43 |
1.1 |
2.4 |
2300 |
| 07D270K |
J |
17 |
22 |
27(24-30) |
53 |
1.4 |
3 |
1800 |
| 07D330K |
J |
20 |
26 |
33(30-36) |
65 |
1.7 |
3.5 |
1500 |
| 07D390K |
J |
25 |
31 |
39(35-43) |
77 |
2.1 |
4 |
1300 |
| 07D470K |
J |
30 |
38 |
47(42-52) |
93 |
3.1 |
5 |
1100 |
| 07D560K |
J |
35 |
45 |
56(50-62) |
110 |
3.6 |
6 |
890 |
| 07D680K |
J |
40 |
56 |
68(61-75) |
135 |
5.5 |
7 |
740 |
| 07D820K |
J |
50 |
65 |
82(74-90) |
135 |
6.5 |
10 |
600 |
| 07D101K |
J |
60 |
85 |
100(90-110) |
165 |
10 |
1200 |
1750 |
7.8 |
12 |
0.25 |
500 |
| 07D121K |
J |
75 |
100 |
120(108-132) |
200 |
9.7 |
13 |
420 |
| 07D151K |
J |
95 |
125 |
150(135-165) |
250 |
11.7 |
13 |
330 |
| 07D181K |
J |
115 |
150 |
180(162-198) |
300 |
13 |
16 |
280 |
| 07D201K |
J |
130 |
170 |
200(185-225) |
340 |
14 |
17 |
250 |
| 07D221K |
J |
140 |
180 |
220(198-242) |
360 |
15 |
19 |
230 |
| 07D241K |
J |
150 |
200 |
240(216-264) |
395 |
18 |
21 |
210 |
| 07D271K |
J |
175 |
225 |
270(243-297) |
455 |
20 |
24 |
185 |
| 07D301K |
J |
190 |
250 |
300(270-330) |
500 |
23 |
26 |
165 |
| 07D331K |
J |
210 |
275 |
330(297-363) |
550 |
25 |
28 |
150 |
| 07D361K |
J |
230 |
300 |
360(324-396) |
595 |
25 |
32 |
140 |
| 07D391K |
J |
250 |
320 |
390(351-429) |
650 |
28 |
35 |
130 |
| 07D431K |
J |
275 |
350 |
430(387-473) |
710 |
30 |
40 |
115 |
| 07D471K |
J |
300 |
385 |
470(426-517) |
775 |
30 |
42 |
105 |
| 07D511K |
J |
320 |
415 |
510(459-561) |
845 |
30 |
45 |
100 |
| 07D561K |
J |
350 |
460 |
560(504-616) |
925 |
30 |
49 |
90 |
| 07D621K |
J |
385 |
505 |
620(558-682) |
1025 |
33 |
55 |
80 |
| 07D681K |
J |
420 |
560 |
680(612-748) |
1120 |
33 |
60 |
75 |
|
|
|
|
