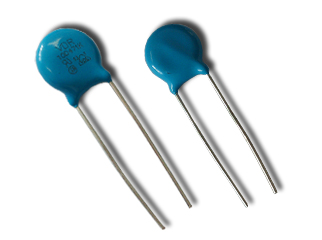

| 10D系列 |
| Varistor Voltage: 18~1100V
Withstanding Surge Current: 500~3500A
Model Size: 10mm
Fast responding to transient over-voltage<25ns
|
|
| |
| 产品详细说明 : |
| Part Number |
Maximum allowable voltage |
Varistor voltage |
Clamping voltage |
Maximum peak current |
Maximum Energy current |
Rated power |
Typical capacitance（Reference） |
| Φ10.0mm |
(Max.) |
(8/20μs) |
(10/1000μs) |
| Standard |
high surge |
AC(V) |
DC (V) |
V1.0mA |
VC |
IP |
Standard |
High surge |
Standard |
High surge |
（W） |
@1KHz(pf) |
| (V) |
(V) |
(A) |
（A） |
（A） |
（J） |
（J） |
| 10D180L |
J |
11 |
14 |
18(15-21) |
36 |
5 |
500 |
1000 |
2.1 |
3 |
0.05 |
5600 |
| 10D220K |
J |
14 |
18 |
22(20-24) |
43 |
2.5 |
5 |
4500 |
| 10D270K |
J |
17 |
22 |
27(24-30) |
53 |
3 |
6 |
3700 |
| 10D330K |
J |
20 |
26 |
33(30-36) |
65 |
4 |
7 |
3000 |
| 10D390K |
J |
25 |
31 |
39(35-43) |
77 |
4.6 |
9 |
2400 |
| 10D470K |
J |
30 |
38 |
47(42-52) |
93 |
5.5 |
11 |
2100 |
| 10D560K |
J |
35 |
45 |
56(50-62) |
110 |
7 |
13 |
1800 |
| 10D680K |
J |
40 |
56 |
68(61-75) |
135 |
8.2 |
15 |
1500 |
| 10D820K |
J |
50 |
65 |
82(74-90) |
135 |
25 |
2500 |
3500 |
12 |
17 |
0.4 |
1200 |
| 10D101K |
J |
60 |
85 |
100(90-110) |
165 |
15 |
18 |
1000 |
| 10D121K |
J |
75 |
100 |
120(108-132) |
200 |
18 |
21 |
830 |
| 10D151K |
J |
95 |
125 |
150(135-165) |
250 |
22 |
25 |
670 |
| 10D181K |
J |
115 |
150 |
180(162-198) |
300 |
27 |
30 |
560 |
| 10D201K |
J |
130 |
170 |
200(185-225) |
340 |
30 |
35 |
500 |
| 10D221K |
J |
140 |
180 |
220(198-242) |
360 |
32 |
39 |
450 |
| 10D241K |
J |
150 |
200 |
240(216-264) |
395 |
35 |
42 |
420 |
| 10D271K |
J |
175 |
225 |
270(243-297) |
455 |
40 |
49 |
370 |
| 10D301K |
J |
190 |
250 |
300(270-330) |
500 |
40 |
54 |
330 |
| 10D331K |
J |
210 |
275 |
330(297-363) |
550 |
43 |
58 |
300 |
| 10D361K |
J |
230 |
300 |
360(324-396) |
595 |
47 |
65 |
280 |
| 10D391K |
J |
250 |
320 |
390(351-429) |
650 |
60 |
70 |
260 |
| 10D431K |
J |
275 |
350 |
430(387-473) |
710 |
65 |
80 |
230 |
| 10D471K |
J |
300 |
385 |
470(423-517) |
775 |
70 |
85 |
210 |
| 10D511K |
J |
320 |
415 |
510(459-561) |
845 |
70 |
90 |
200 |
| 10D561K |
J |
350 |
460 |
560(504-616) |
925 |
70 |
92 |
180 |
| 10D621K |
J |
385 |
505 |
620(558-682) |
1025 |
70 |
95 |
160 |
| 10D681K |
J |
420 |
560 |
680(612-748) |
1120 |
70 |
98 |
150 |
| 10D751K |
J |
460 |
615 |
750(675-825) |
1240 |
75 |
100 |
130 |
| 10D781K |
J |
485 |
640 |
780(702-858) |
1290 |
80 |
105 |
130 |
| 10D821K |
J |
510 |
670 |
820(738-902) |
1355 |
85 |
110 |
120 |
| 10D911K |
J |
550 |
745 |
910(819-1001) |
1500 |
93 |
130 |
110 |
| 10D102K |
J |
625 |
825 |
1000(900-1100) |
1650 |
102 |
140 |
100 |
| 10D112K |
J |
680 |
895 |
1100(990-1210) |
1815 |
115 |
155 |
90 |
|
|
|
|
